QGIS 3 → QGIS 4 / Qt6

Notes from migrating two plugins

Ismail Sunni · Camptocamp Tech Lunch 2026 #3

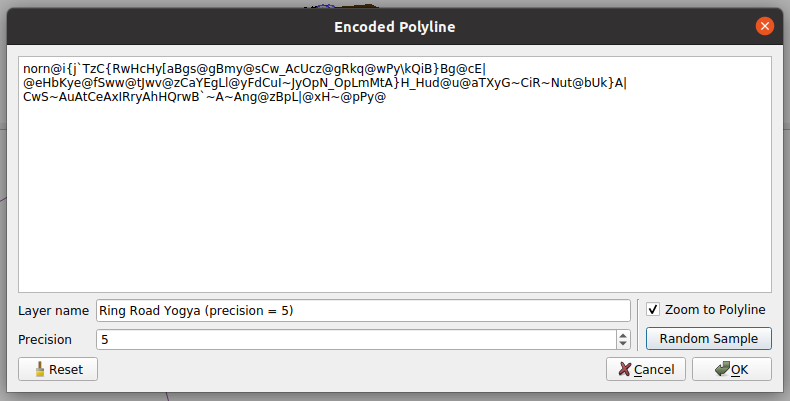

• Encoded Polyline — ~200 LOC, no UI state

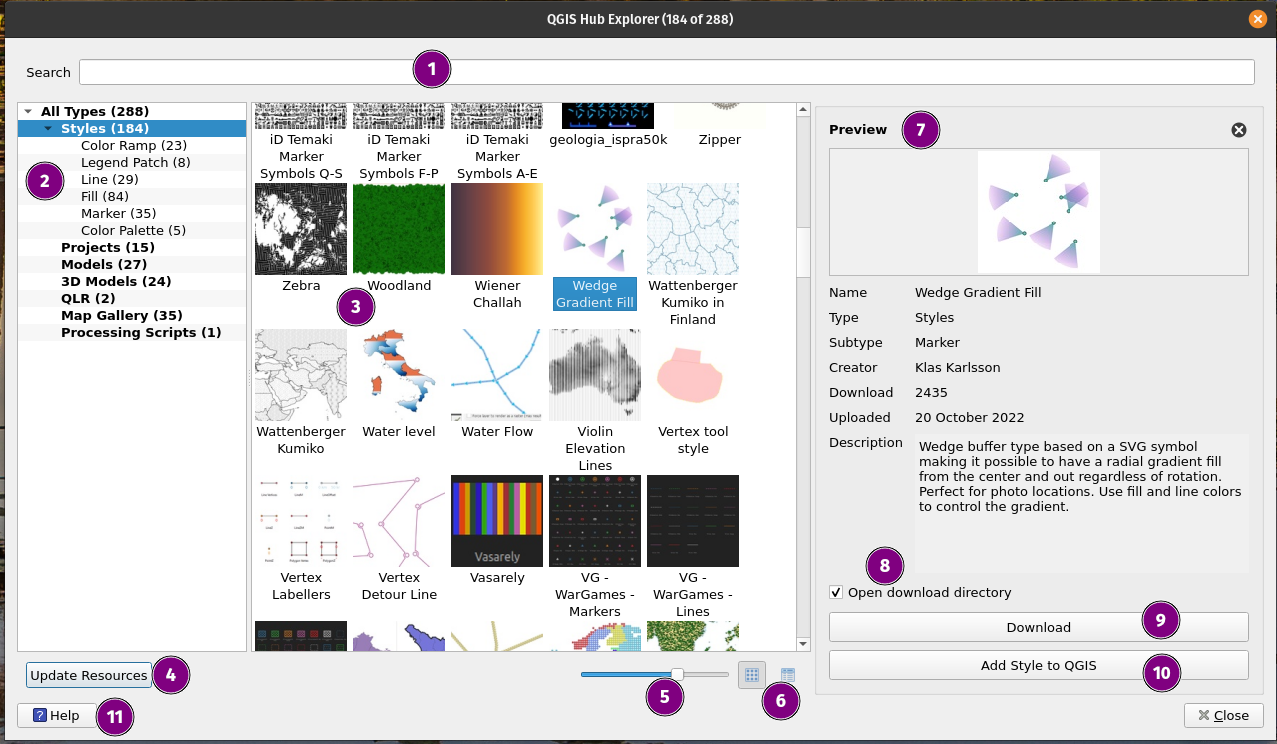

• QGIS Hub Plugin — network, tree views, processing, mock-heavy tests

Both now dual-support QGIS 3 (Qt5) and QGIS 4 (Qt6).

Meet the plugins

Why now?

• QGIS 4.0 shipped 6 March 2026 (4.0.2 out 1 May 2026) — on Qt6
• PyQt5-only plugins silently disappear from users' QGIS 4 installs
• Mechanical work is straightforward
• The interesting failures are in:
  • tests · network code · regex · packaging · CI

A tiny plugin doesn't expose most of these.

The mechanical 80%

# Imports
from PyQt5.X import Y          #
from qgis.PyQt.X import Y      #  shim picks Qt5/Qt6 at runtime

# Dialogs
dialog.exec_()                  #
dialog.exec()                   #

• Drop six and other Py2-era polyfills
• metadata.txt: add qgisMaximumVersion=4.99
• Don't add supportsQt6=True — no longer recognized

Scoped enums — bigger than it sounds

PyQt5 accepts unscoped names and raw ints. PyQt6 accepts neither.

The test-suite trap

# Worked on Qt5 (int → enum coercion). Fails on Qt6.
mock_reply.error.return_value = 0
proxy.sort(0, 1)

# Qt6-safe
mock_reply.error.return_value = QNetworkReply.NetworkError.NoError
proxy.sort(0, Qt.SortOrder.DescendingOrder)

These regressions only surface on the Qt6 CI job.
Qt5 CI stays green and you don't notice.

Things Qt6 removed: QRegExp

# Qt5-only
from qgis.PyQt.QtCore import QRegExp
proxy.setFilterRegExp(QRegExp(text, Qt.CaseInsensitive))
if regex.indexIn(s) != -1: ...

# Works on both
from qgis.PyQt.QtCore import QRegularExpression
proxy.setFilterRegularExpression(
    QRegularExpression(text,
        QRegularExpression.PatternOption.CaseInsensitiveOption)
)
if regex.match(s).hasMatch(): ...

Different API, not a drop-in replacement.

Things Qt6 removed: webp

• Qt6 in QGIS 4 does not bundle the webp image-format plugin
• QPixmap("foo.webp") silently returns null — no error, broken thumbnail

Hub Plugin's fix:

1. Probe QImageReader.supportedImageFormats() at import
2. Fall back to one-shot Pillow → PNG conversion (cached beside original)
3. Pillow is an optional dependency

If webp ever returns to Qt6, the probe skips the conversion automatically.

Plugin loading + module gotchas

QGIS 4 stopped putting the plugin dir on sys.path.

import polyline                  #  ModuleNotFoundError on QGIS 4
from . import polyline           #

PyQt5-only processing scripts (hosted on QGIS Hub) crash on Qt6.
Hub Plugin catches it and surfaces a clear message instead of a raw
traceback — script is still saved to disk so users can fix and retry.

CI surprises

Run both matrices: Qt5 LTS and Qt6.

matrix:
  include:
    - image: qgis/qgis:release-3_34
      pip-extra-args: ""
    - image: qgis/qgis:4.0
      pip-extra-args: "--break-system-packages"

• qgis/qgis:4.0 = Debian Trixie + Python 3.13 → PEP 668 externally-managed
• --break-system-packages needed per matrix entry (older Qt5 pip rejects unknown flags)
• Drop pip install -U pip setuptools wheel — Trixie's wheel has no RECORD file

Plugin-repo gates

Validator now requires tracker= and homepage= in metadata.txt.
Cryptic error message: "Cannot find metadata tracker."

New: automatic security scanning on every uploaded version

• Bandit (blocking) — shell injection, eval/exec, weak crypto
• detect-secrets (blocking) — hardcoded API keys, tokens
• Flake8 + file analysis (informational)

Run locally first:

pip install bandit detect-secrets flake8
bandit -r .  &&  detect-secrets scan  &&  flake8

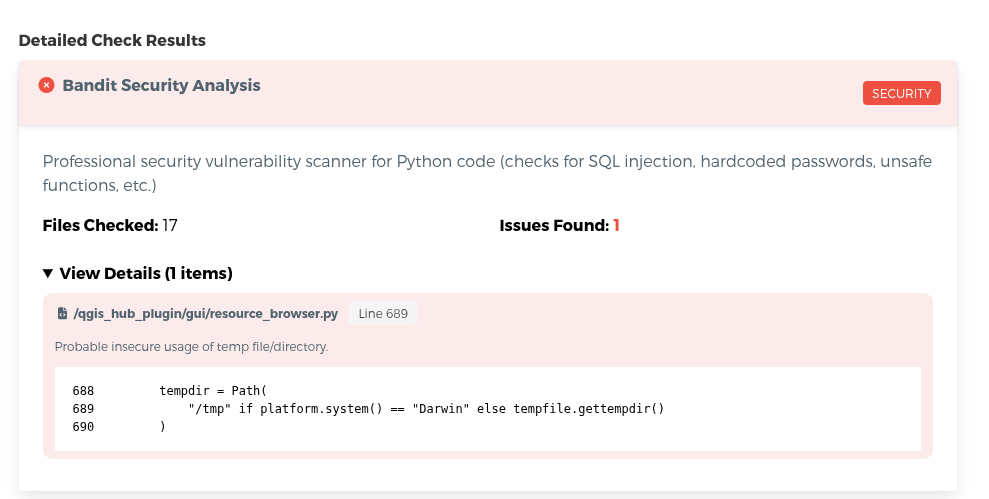

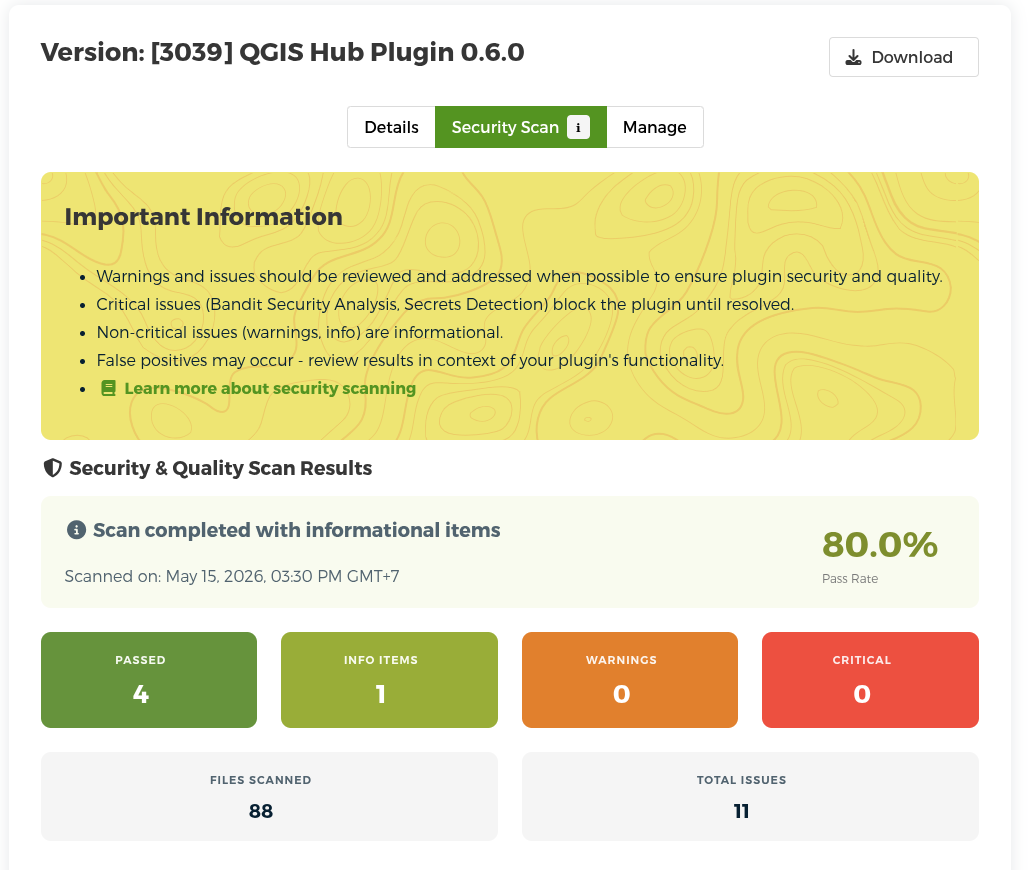

Security scan results

Packaging tip

# git archive ships everything tracked — CLAUDE.md, screenshots, CI configs
git archive --prefix=plugin/ -o plugin.zip HEAD \
    __init__.py main_dialog.py polyline.py \
    metadata.txt redLineStyle.qml encodedPolyline.svg LICENSE

Pass an explicit file list so the uploaded zip is just runtime files.
Smaller download, fewer surprises in the security scanner.

Takeaway

• Tiny plugin: ~half a day
• Mid-size plugin (tests, network, UI): ~2 days
  • Most time in CI matrix + test-mock fixes, not the plugin code itself
• Use an LLM — it speeds up the mechanical bits a lot, and gives you headroom to add features/tests/docs you'd otherwise skip

Do it now

QGIS 4 is fresh. Your bug reports are still quiet.
Easier to migrate before users start filing them.

Thanks

Questions?

Slides: ismailsunni.id/slides/qgis-4-migration

Plugins:

• github.com/ismailsunni/qgis-encoded-polyline
• github.com/qgis/QGIS-Hub-Plugin

Docs:

• plugins.qgis.org/docs/migrate-qgis4
• plugins.qgis.org/docs/security-scanning
